特点与用途/Features & Applications

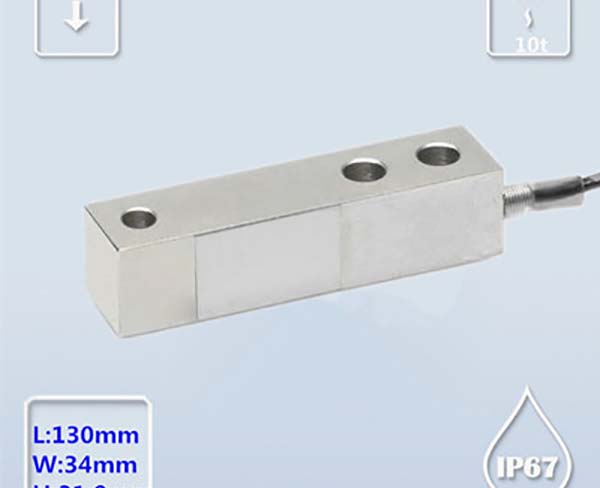

B719称重传感器可满足1Kb~20Klb;0.5t~10t量程范围内多种精度等级的测量。
合金钢材料,内部灌胶密封,防油、防水、耐腐蚀,可适用于各种环境。
单剪切梁结构设计,安装使用方便灵活。
适用于电子平台秤、料斗秤等各类电子称重设备。
*防爆型产品,可用于恶劣环境及危险性场合。
Made of Alloy Steel,Strong stability, available in capacities as 1Klb to 20Klb and 0.5t to 10t
Sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
Single shear beam, used in various automated stamping applications,IP68 protection
Mainly used for packing scales,hopper scale and industrial measuring system
Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
安装尺寸/Mounting Dimension
参数 |
Specifications |
技术指标/Technique |
额定容量 |
Capacity(t) |
0.5,1,1.5,2,2.5,3,5,10 |
精度等级 |
Accuracy class |
C2/C3 |
输出灵敏度 |
Rated output |
2.0±0.02 |
零点输出 |
Zero balance |
±1.0%F.S. |
*检定分度数(n max) |
Maximum number of verification intervals |
2000 / 3000 |
最小检定分度值(v min) |
Minimum load cell verification interval |
5000 / 10000 |
综合误差 |
Combined error |
±0.03%F.S. / ±0.02%F.S. |
蠕变(30min) |
Creep(30min) |
≤±0.024 / ±0.016%F.S. |
温度灵敏度漂移 |
Temp.effect on output |
≤±0.017 /0.011%F.S./10℃ |
零点温度漂移 |
Temp.effect on zero |
≤±0.023 /0.015%F.S./10℃ |
输入电阻 |
Input impedance |
350±3.5Ω |
输出电阻 |
Output impedance |
350±3.5Ω |
绝缘电阻 |
Insulation |
≥5000MΩ/100VDC |
激励电压 |
Recommended excitation |
5~12V |
*激励电压 |
Maximum excitation |
18V |
温度补偿范围 |
Compensated temp range |
-10~40℃ |
工作温度范围 |
Operation temp range |
-35~65℃ |
*超载 |
Safe overload |
150%F.S. |
极限超载 |
Ultimate overload |
300%F.S. |
电缆线尺寸 |
Cable size |
Φ5×6000mm |
材料 |
Material |
Alloy Steel |
防护等级 |
IP Class |
IP67 |
配线图/Wiring Code
