特点与用途/Features & Applications

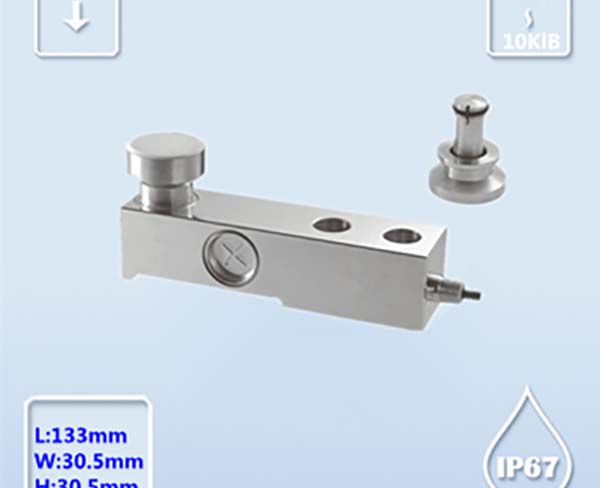

B725称重传感器可满足0.04Kb～10Klb量程范围内多种精度等级的测量。
合金钢材料，内部灌胶密封，防油、防水、耐腐蚀，可适用于各种环境。
单剪切梁结构设计，安装使用方便灵活。
适用于电子平台秤、料斗秤等各类电子称重设备。
*防爆型产品，可用于恶劣环境及危险性场合。
Made of Alloy Steel，Strong stability, available in capacities as 0.04Klb to 10Klb
Sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
Single shear beam, used in various automated stamping applications,IP68 protection
Mainly used for packing scales,hopper scale and industrial measuring system
Safe and anti-explosive product, can be used in atrocious environment and hazardous areas

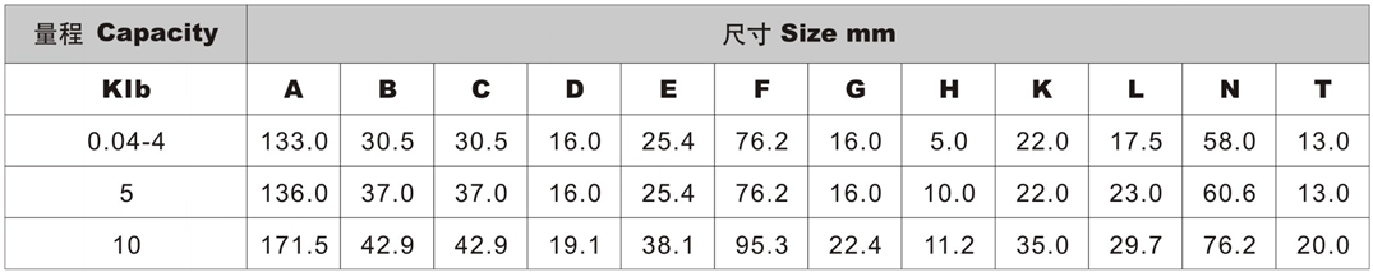

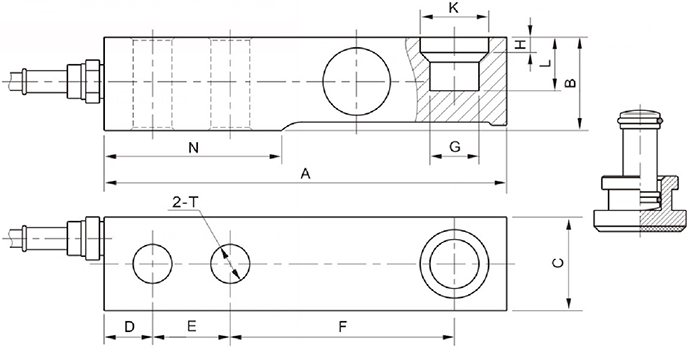

安装尺寸/Mounting Dimension
|
参数 |
Specifications |
技术指标/Technique |
|
额定容量 |
Capacity（Klb） |
0.04-4, 5, 10 |
|
精度等级 |
Accuracy class |
C3 |
|
输出灵敏度 |
Rated output |
2.0±0.005 |
|
零点输出 |
Zero balance |
±1.0%F.S. |
|
非线性 |
Non-linearity |
±0.03%F.S. |
|
滞后 |
Hysteresis |
±0.03%F.S. |
|
蠕变（30min） |
Creep(30min) |
≤±0.03%F.S. |
|
温度灵敏度漂移 |
Temp.effect on output |
≤±0.03%F.S./10℃ |
|
零点温度漂移 |
Temp.effect on zero |
≤±0.03%F.S./10℃ |
|
输入电阻 |
Input impedance |
385±10Ω |
|
输出电阻 |
Output impedance |
350±3Ω |
|
绝缘电阻 |
Insulation |
≥5000MΩ/100VDC |
|
激励电压 |
Recommended excitation |
10V |
|
*激励电压 |
Maximum excitation |
15V |
|
温度补偿范围 |
Compensated temp range |
-10~50℃ |
|
工作温度范围 |
Operation temp range |
-20~60℃ |
|
*超载 |
Safe overload |
120%F.S. |
|
极限超载 |
Ultimate overload |
200%F.S. |
|
电缆线尺寸 |
Cable size |
Φ5.4×6000mm |
|
材料 |
Material |
Alloy Steel |
|
防护等级 |
IP Class |
IP67 |

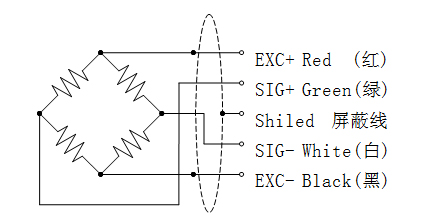

配线图/Wiring Code
