特点与用途/Features & Applications

        B726 称重传感器可满足 0.04Kb～10Klb量程范围内多种精度等级的测量。

        不锈钢或合金钢材料，内部灌胶密封，防油、防水、耐腐蚀，可适用于各种环境。
        单剪切梁结构设计，安装使用方便灵活。
        适用于电子平台秤、料斗秤等各类电子称重设备。
        *防爆型产品，可用于恶劣环境及危险性场合。

        Made of Stainless Steel or Alloy Steel，Strong stability, available in capacities as 0.04Klb to 10Klb
        Sealed by adhesive inside, oil-proof,waterproof and anti-corrosion, suitable for all kinds of environment.
        Single shear beam, used in various automated stamping applications,IP67 protection
        Mainly used for packing scales,hopper scale and industrial measuring system
        Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

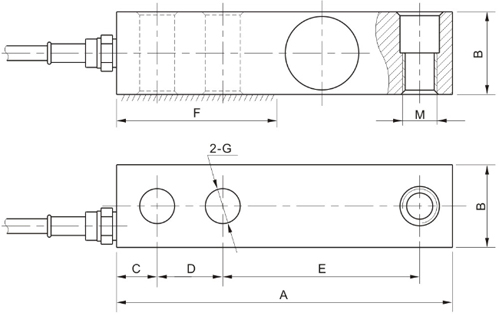

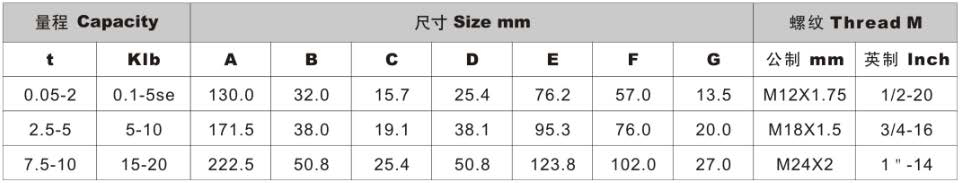

安装尺寸/Mounting Dimension

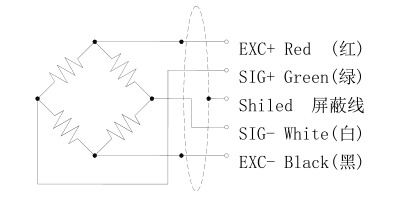

配线图/Wiring Code
