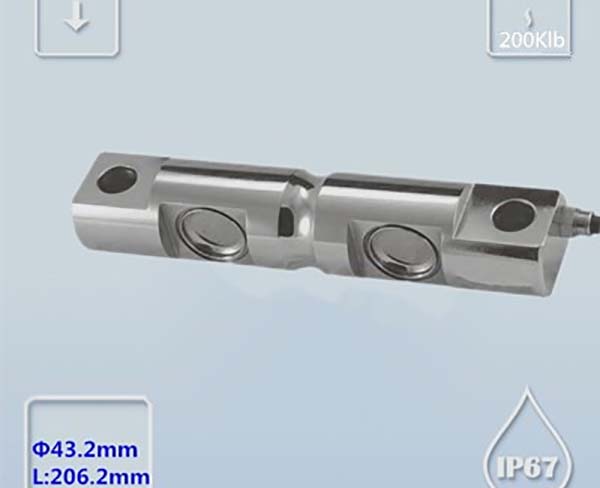

特点与用途/Features & Applications
合金钢或不锈钢材料
精度高、抗偏载能力强
采用双剪切梁结构,配以独特的浮动承力机构,容易安装,可自动复位
经良好的防潮密封措施,适应恶劣的工作环境
适用于各种电子汽车衡、轨道衡、料斗秤及各种工业称重系统
Made of alloy steel or stainless steel.
High accuracy, high side load tolerance and shock resistance
Unique floating bearing structure, self-resetting and certering, Easy to install
Moistureproof sealed, ideal for hostile environment
Mainly used for electronic truck scales, electronic railroad scales, hopper scales and other industrial weighing systems.

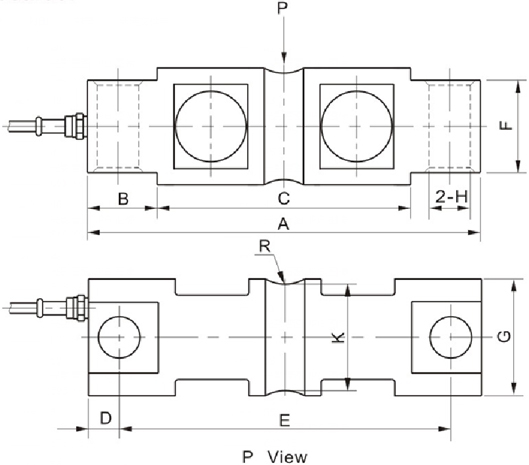

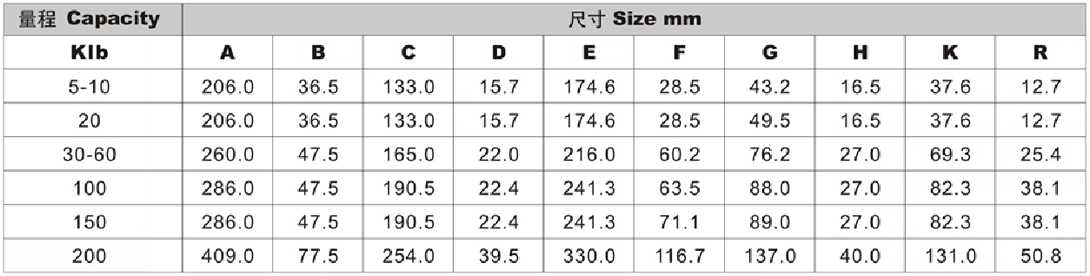

安装尺寸/Mounting Dimension
参数 |
Specifications |
技术指标/Technique |
额定容量 |
Capacity |
5-10,20,30-60,100-200Klb |
精度等级 |
Accuracy class |
C3 |
输出灵敏度 |
Rated output |
3.0±0.015mV/V |
零点输出 |
Zero balance |
±1.00%F.S. |
非线性 |
Non-linearity |
±0.03%F.S. |
滞后 |
Hysteresis |
±0.03%F.S. |
重复性 |
Repeatability |
±0.02%F.S. |
蠕变(30min) |
Creep(30min) |
0.02%F.S. |
温度灵敏度漂移 |
Temp.effect on output |
0.03%F.S./10℃ |
零点温度漂移 |
Temp.effect on zero |
0.03%F.S./10℃ |
输入电阻 |
Input impedance |
700±5Ω |
输出电阻 |
Output impedance |
700±3Ω |
绝缘电阻 |
Insulation |
≥5000MΩ/100VDC |
激励电压 |
Recommended excitation |
10V |
*激励电压 |
Maximum excitation |
15V |
温度补偿范围 |
Compensated temp range |
-10~50℃ |
工作温度范围 |
Operation temp range |
-20~60℃ |
*超载 |
Safe overload |
120%F.S. |
极限超载 |
Ultimate overload |
300%F.S. |
电缆线尺寸 |
Cable size |
Φ6×10000mm |
材料 |
Material |
Alloy or Stainless Steel |
防护等级 |
IP Class |
IP67 / IP68 |

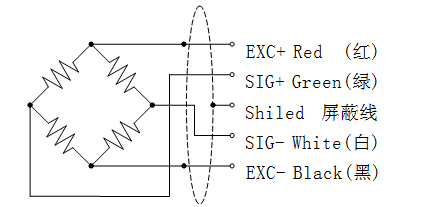

配线图/Wiring Code
